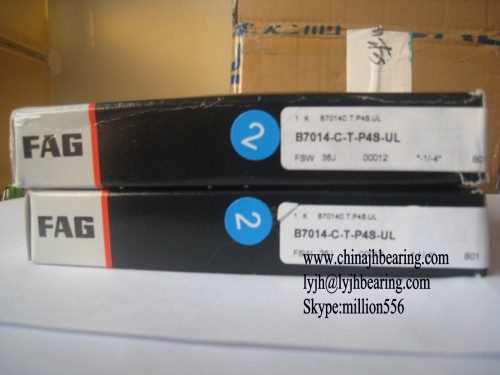

B7014-C-T-P4S-UL FAG original machine tool main spindle bearing,70x110x20mm,Italy customer order

Place of Origin : Germany

Brand Name : FAG

Model Number : B7014-C-T-P4S-UL

Certification : ORIGINAL

Price : NEGOTIATION

Packaging Details : Standard carton

Delivery Time : 2 days

Payment Terms : T/T

Supply Ability : 1000PCS/MONTH

MOQ : 2PCS

Contact Now

FAG bearingsB7014-C-T-P4S-UL, we had supplied the FAG origianl B7014-C-T-P4S-UL to Italy customer
d: 70mm D: 110mm B: 20mm
Type:	B	Standard Steel balls
Dimension series:	70	Medium series
Dimension（dxDxh）		70x110x20mm
Contact angle:	C	C =15° E = 25°
Cages:	T	Plastic fiber cage, outer ring guided
Precision:	P4S	P4S FAG standard, reference to DIN620, higher than P4
Bearing arrangement:	U	single bearing, universal assemble
Preload:	L	light preload

B7014.C.T.P4S.UL High Precision Ball Bearing B7014-C-T-P4S-UL L Machine tool main spindle bearing

B7014CTP4SUL FAG High Speed Angular Spindle Bearing, Ball Bearing is Super precision Angular with 15 degrees contact angle and Phonetic cage, bearing is P4 quality and made in Germany

Item: B7014-C-T-P4S-UL FAG Ball Bearing，FAG machine tool main spindle bearing

Type: FAG Angular Spindle Ball Bearing

ball: steel ball

Quality: P4 Grade

Dimensions: 70mm x110mm x20mm /Metric

ID (inner diameter)/Bore: 70mm

OD (outer diameter): 110mm

Width/Height/thickness: 20mm

Size:70 x 110 x 20mm

Quantity: One Bearing

Dynamic load rating Cr: 50000 N

Static load rating Cor: 30500 N

Limiting Speed:

Grease Lubrication: 13000 RPM

Oil Lubrication: 20000 RPM

The delivery time: in stock, within one day after getting the order

Package:standard carton or standard wooden case

Shipping term:TNT,FEDEX,DHL Express or your required.

B7014-C-T-P4S-UL FAG original machine tool main spindle bearing,70x110x20mm,Italy customer order
